MODEL: EHFD55

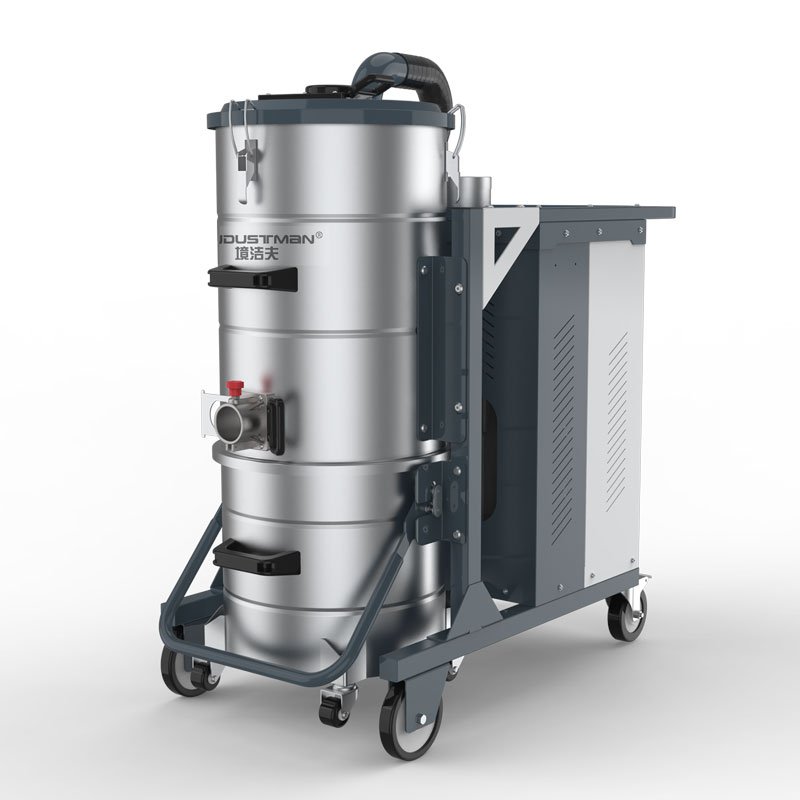

EHFD Series Three Phase Industrial Vacuum Cleaner for Steel Shot and Fine Dust
ENDUSTMAN EHFD55 is a 5500W three phase vacuum for steel shot and fine dust. The 32 kPa suction, 100L tank, and large 52800 cm² filter keep heavy cleanup fast and filters cleaner for longer.
|
Key Options |
Value |
|---|---|
|
Power |
5500 W |
|
Voltage / Phase |
380V / 50Hz |
|
Airflow |
530 m³/h What is this? |
|
Vacuum / Suction |
32 kPa What is this? |
|
Tank Capacity |
100 L What is this? |
Specifications
|
Options |
Value |
|---|---|
|
Inlet Diameter |
50 mm |
|
Filter Cleaning |
Manual Back-flush What is this? |
|
Noise |
72 dB(A) What is this? |
|
Filter Area |
52800 cm² What is this? |
|
Weight |
149 kg |
|
Dimensions |
1100 × 600 × 1280 mm |
|
MOQ |
No Minimum order required |
|
Shipping |
Global Delivery, Customs clearance supported |
|
Warranty |
1-year warranty with responsive after-sales support. |
|
Key application |
Standard Accessories
|
Accessories |
Image |
Info |
|---|---|---|
|
Hose |
 |
Connects the main unit and attachments flexibly, extending the cleaning reach. |
|
Round brush |
 |
Dusts and vacuums, for surfaces that scratch easily. |
|
Steel wand |
 |
Redirects the airflow to clean tight corners. |
|
Floor nozzle |
 |
Vacuums large areas, for hard floors. |
|
Squeegee nozzle |
 |
Quickly picks up water, for wet areas. |
|
Crevice tool |
 |
Reaches into narrow gaps to vacuum. |
Description
The EHFD series is a heavy-duty, high-power three-phase industrial vacuum cleaner built for continuous operation in demanding environments. Driven by a side-channel high-pressure blower, it delivers powerful, stable suction for removing heavy materials such as iron chips, glass, steel grit, and stones, as well as large volumes of industrial dust. Pull-rod reverse-air cleaning keeps the washable laminated filter clear during long shifts, and the quick-release up-and-down tank speeds up waste disposal. A full set of 50mm accessories is included as standard to cover different cleaning scenarios, and integrated overload, overcurrent, phase-loss, and leakage protection ensures safe electrical operation around the clock.
Key Features
- Side-channel high-pressure blower with strong suction for 24-hour operation;
- Pull-rod reverse-air filter cleaning, fast and convenient;
- Laminated filter element, washable and reusable, with excellent filtration;
- Automatic pressure relief when negative pressure is too high;
- Quick-connect suction inlet for easy operation;
- Quick-release up-and-down tank design for easy waste disposal;
- Full set of 50mm accessories included as standard;
- Overload, overcurrent, phase-loss, and leakage protection for electrical safety.
