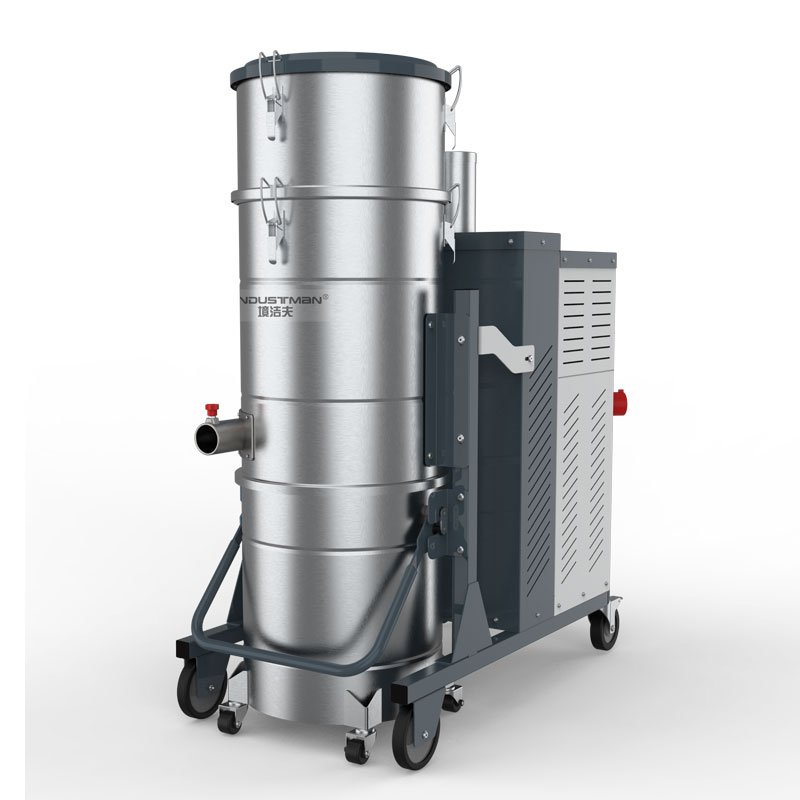

MODEL: EHFD130M

Three Phase Heavy Duty Industrial Vacuum Cleaner with Pulse Backflushing

ENDUSTMAN EHFD130M is a 13000W three phase vacuum for the heaviest dust loads. Pulse backflushing cleans the filter automatically, and 1110 m³/h airflow with a 140L tank supports non-stop continuous work.

Key Options	Value
Power	13000 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	1110 m³/h^{What is this?}
Vacuum / Suction	30 kPa^{What is this?}
Tank Capacity	140 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Pulse Jet Cleaning ^{What is this?}
Noise	76 dB(A) ^{What is this?}
Filter Area	120000 cm² ^{What is this?}
Weight	265 kg
Dimensions	1500 × 650 × 1610 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	High volumes of fine dust, clog-prone materials, and continuous production lines with minimal operator attendance.

Accessories

Standard 50mm Accessory Kit

5 m hose (50mm inner diameter, quick-connect);
Floor nozzle;
Round brush;
Crevice tool;
One steel S-wand.

The 50mm kit does not include a squeegee nozzle.

76mm inlet and accessories available on request for this model.

See all accessories, hose & power supply options →

Description

This three-phase heavy-duty industrial vacuum cleaner features automatic pulse-jet backflushing and is designed for long uninterrupted operation. Timed reverse-air pulses clean the filter automatically, with the cycle digitally adjustable to match dust conditions, eliminating manual filter maintenance while sustaining strong suction during continuous, high-volume dust collection. The washable laminated filter can be reused, the quick-release up-and-down tank makes waste disposal simple, and a phase selector switch, vacuum gauge, and silencer come as standard. A complete set of 50mm accessories covers a wide range of working scenarios, making the machine a dependable choice for factories and production lines with heavy, continuous dust loads.

Key Features

Side-channel high-pressure blower with strong suction, supporting long continuous operation;
Automatic pulse-jet backflushing with digitally adjustable cycle time;
Laminated filter element, washable and reusable, with excellent filtration;
Automatic pressure relief when negative pressure is too high;
Quick-connect suction inlet for easy use;
Quick-release up-and-down tank design for easy waste disposal;
Full set of 50mm accessories included as standard;
Equipped with phase selector switch, vacuum gauge, and silencer.
