MODEL: EHFD22M

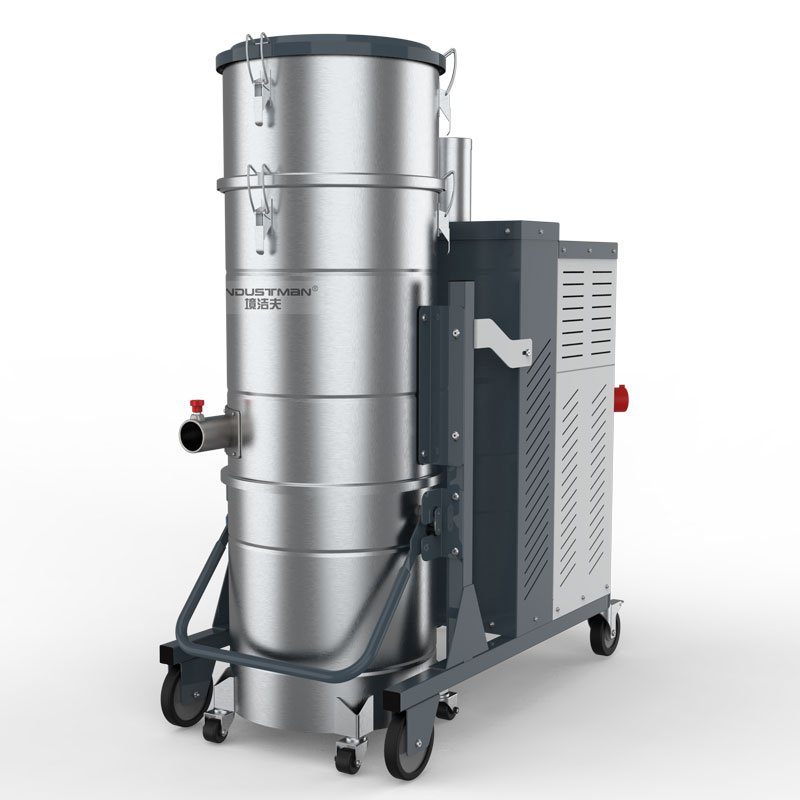

EHFD-M Heavy Duty Industrial Vacuum Cleaner with Pulse Jet Self-Cleaning System
ENDUSTMAN EHFD22M is a heavy duty vacuum with automatic pulse jet filter cleaning. The digital timer backflushes the filter by itself, so 2200W suction stays strong through 24-hour non-stop operation.
|
Key Options |
Value |
|---|---|
|
Power |
2200 W |
|
Voltage / Phase |
380V / 50Hz |
|
Airflow |
320 m³/h What is this? |
|
Vacuum / Suction |
22 kPa What is this? |
|
Tank Capacity |
120 L What is this? |
Specifications
|
Options |
Value |
|---|---|
|
Inlet Diameter |
50 mm |
|
Filter Cleaning |
Pulse Jet Cleaning What is this? |
|
Noise |
68 dB(A) What is this? |
|
Filter Area |
41000 cm² What is this? |
|
Weight |
155 kg |
|
Dimensions |
1250 × 590 × 1600 mm |
|
MOQ |
No Minimum order required |
|
Shipping |
Global Delivery, Customs clearance supported |
|
Warranty |
1-year warranty with responsive after-sales support. |
|
Key application |
Standard Accessories
|
Accessories |
Image |
Info |
|---|---|---|
|
Hose |
 |
Connects the main unit and attachments flexibly, extending the cleaning reach. |
|
Round brush |
 |
Dusts and vacuums, for surfaces that scratch easily. |
|
Steel wand |
 |
Redirects the airflow to clean tight corners. |
|
Floor nozzle |
 |
Vacuums large areas, for hard floors. |
|
Squeegee nozzle |
 |
Quickly picks up water, for wet areas. |
|
Crevice tool |
 |
Reaches into narrow gaps to vacuum. |
Description
The EHFD-M series is a three-phase heavy-duty industrial vacuum cleaner with automatic pulse-jet filter cleaning, engineered for 24-hour non-stop operation. A digitally controlled timer adjusts the backflushing cycle, cleaning the filter automatically without manual intervention and maintaining consistent suction even under heavy dust loads. The washable laminated filter is reusable, the quick-release up-and-down tank simplifies waste disposal, and a vacuum gauge, phase selector switch, and silencer are fitted as standard. Capable of clearing large volumes of dust while working continuously, the EHFD-M is ideal for production lines, metalworking shops, and other high-dust industrial environments requiring uninterrupted dust extraction. A pressure relief device protects the blower under high negative pressure, helping extend service life and reduce downtime.
Key Features
- Side-channel high-pressure blower with strong suction for continuous 24-hour operation;
- Automatic pulse-jet backflushing with digitally adjustable cycle time;
- Laminated filter element, washable and reusable, with excellent filtration;
- Automatic pressure relief when negative pressure is too high;
- Quick-connect suction inlet for convenient use;
- Quick-release up-and-down tank design for easy waste disposal;
- Full set of 50mm accessories included as standard;
- Equipped with phase selector switch, vacuum gauge, and silencer.
