MODEL: EHFD22XM

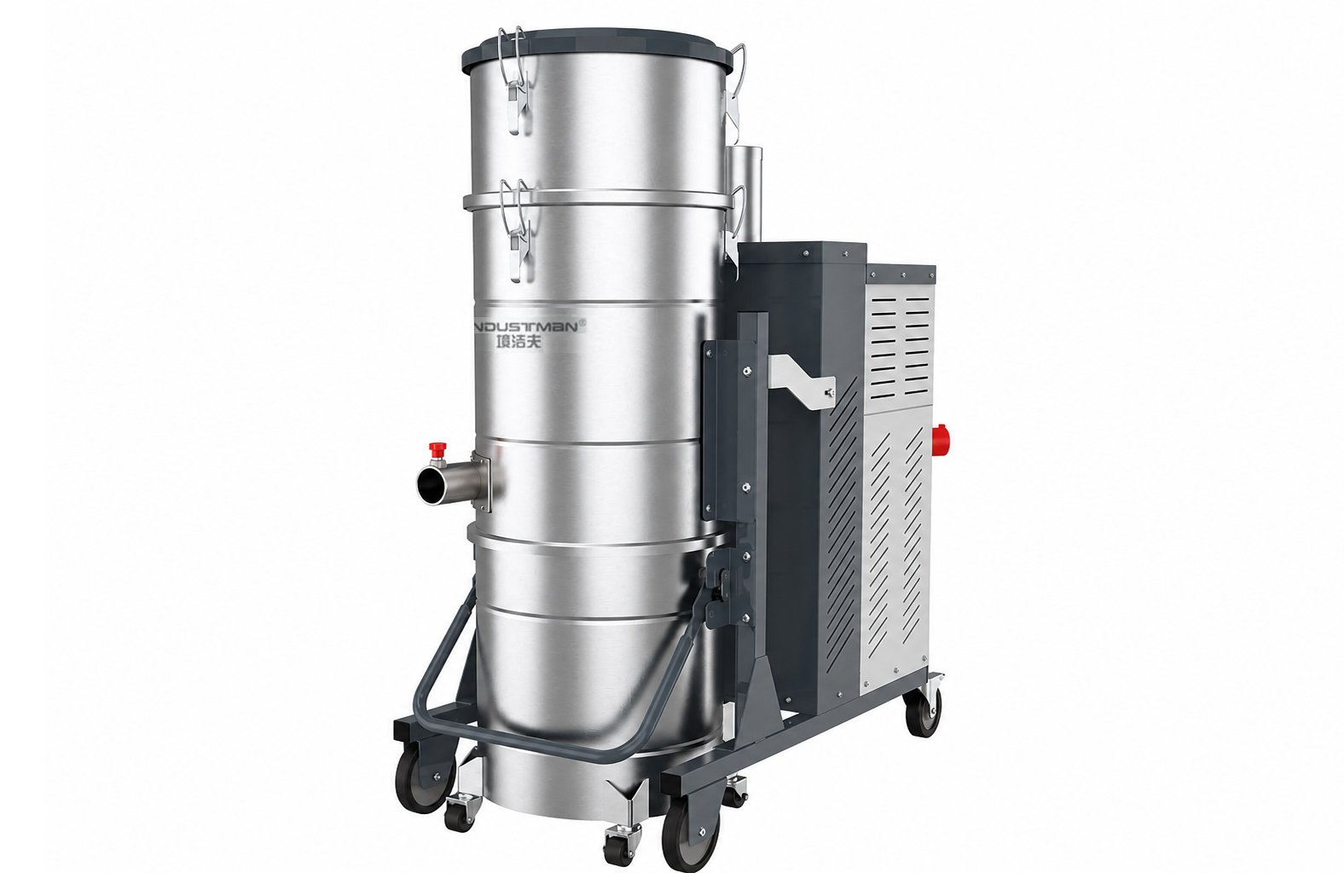

EHFD22XM Three Phase Pulse Jet Self-Cleaning Industrial Vacuum Cleaner with External Air Supply

ENDUSTMAN EHFD22XM combines 2200W suction with automatic pulse-jet filter cleaning driven by on-site compressed air. Three PTFE filters stay clean without manual work — ideal for fine dust in continuous production.

Key Options	Value
Power	2200 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	320 m³/h^{What is this?}
Vacuum / Suction	22 kPa^{What is this?}
Tank Capacity	120 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	40 mm
Filter Cleaning	Pulse Jet Cleaning ^{What is this?}
Noise	^{What is this?}
Filter Area	81000 cm² ^{What is this?}
Weight
Dimensions
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	High volumes of fine dust and unattended continuous operation where a stable 5–9 bar compressed air supply is already available on site.

Accessories

Standard 40mm Accessory Kit

5 m nylon hose (40mm inner diameter, quick-connect);
Floor nozzle for dry pickup;
Squeegee nozzle for water pickup;
Round brush for delicate surfaces;
Crevice tool for narrow gaps;
Two stainless steel wands — connectable into one long tube.

See all accessories, hose & power supply options →

Description

The EHFD22XM is a three-phase heavy-duty industrial vacuum cleaner with automatic pulse-jet filter cleaning driven by on-site compressed air (a stable 5-9 bar air supply is required). Timed pulse backflushing cleans the three Toray 0.3μm PTFE-membrane filters while the machine keeps suctioning — interval and duration are adjustable — so fine dust never builds up and no operator is needed for filter care. A side-channel high-pressure blower delivers 22 kPa vacuum and 320 m³/h airflow for long continuous operation, while the standard pre-separator intercepts heavy or sharp debris and the 120L quick-release up-and-down tank speeds up disposal. It is ideal for high-volume fine dust, clog-prone materials, and unattended continuous production lines where compressed air is already available. Models above 7.5kW are not recommended for liquid pickup; wet applications with large liquid volumes are better served by an industrial oil vacuum.

Key Features

Side-channel high-pressure blower with strong suction, suitable for long continuous operation;
Automatic pulse-jet cleaning powered by on-site 5-9 bar compressed air; adjustable interval and duration; backflushes while suctioning;
Three Toray 0.3μm PTFE-membrane filters, 81,000 cm² total area, washable and reusable;
Standard pre-separator protects filters from heavy or sharp materials;
Quick-release 120L up-and-down tank for easy waste disposal;
40mm quick-connect inlet with 5m hose; other diameters customizable;
Standard 380V/50Hz; models up to 3kW available in 220V; overseas voltages customizable.
