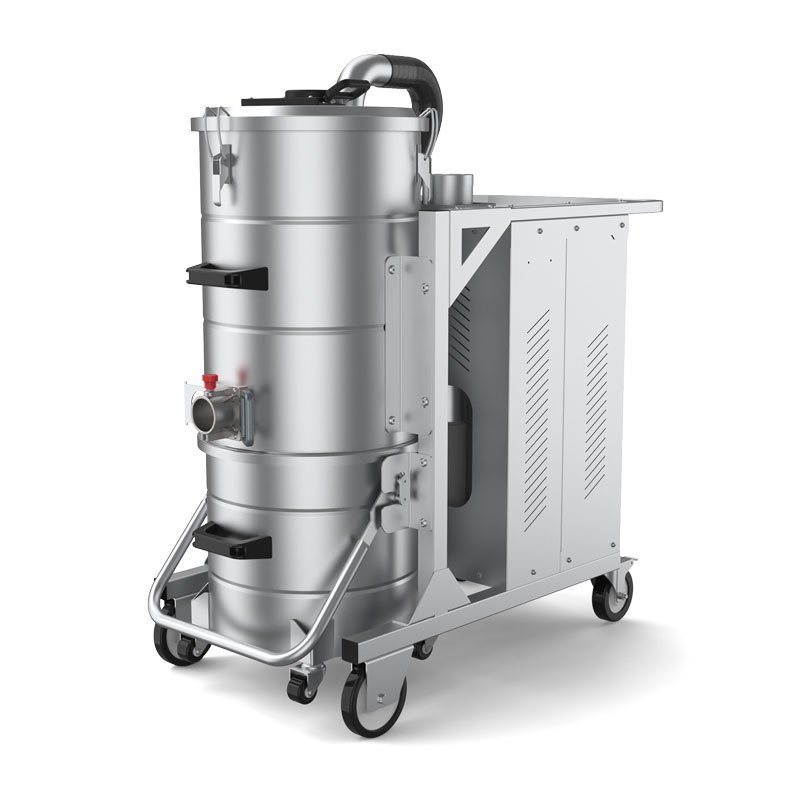

MODEL: EHFD30H

EHFD-H Series High Temperature Industrial Vacuum Cleaner for Foundry Workshops

ENDUSTMAN EHFD30H is a high temperature vacuum for foundry workshops. Its 3000W heat-resistant blower, stainless tank, and special hose safely collect hot dust and debris up to 300C.

Key Options	Value
Power	3000 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	380 m³/h^{What is this?}
Vacuum / Suction	26 kPa^{What is this?}
Tank Capacity	100 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	40 mm
Filter Cleaning	Manual Cleaning ^{What is this?}
Noise	69 dB(A) ^{What is this?}
Filter Area	52800 cm² ^{What is this?}
Weight	140 kg
Dimensions	1100 × 600 × 1250 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Hot materials up to approx. 300°C: furnace ash, hot metal chips, welding slag, foundry sand, hot granules, boiler and kiln ash.

Accessories

High-Temperature Accessory Kit (50mm)

5 m heat-resistant hose (50mm);
Heat-resistant floor nozzle;
Heat-resistant steel connecting tubes and wands.

Standard nylon hoses and plastic nozzles must not be used for high-temperature work.

See all accessories, hose & power supply options →

Description

The EHFD-H series high-temperature industrial vacuum cleaner features a well-engineered stainless steel body, heat-resistant fiber filter media, and a 380V three-phase power supply. It can extract materials at temperatures up to 300C (higher temperature versions available on request) and operates continuously for over 36 hours. The dust bucket is made of double-layer 1.2mm stainless steel plate with a quick-release separate tank design, and dedicated heat-resistant hoses, stainless steel nozzles, and heat-resistant casters complete the heavy-duty build. With overheat, overload, and phase-loss protection, the EHFD-H is ideal for cleaning and recovering hot materials in boiler plants, tempered glass factories, foundry workshops, and steel mills.

Key Features

High-quality heat-resistant high-pressure vacuum pump withstands high working temperatures for long continuous operation;
Full stainless steel body; dust bucket made of double-layer 1.2mm stainless steel plate with quick-release separate tank design for easy waste handling;
Dedicated heat-resistant hose and stainless steel nozzle for faster cleaning, plus heat-resistant casters for easy mobility;
Automatic pressure relief when negative pressure is too high;
Overheat, overload, and phase-loss protection for better motor protection.
