MODEL: EHFD30M

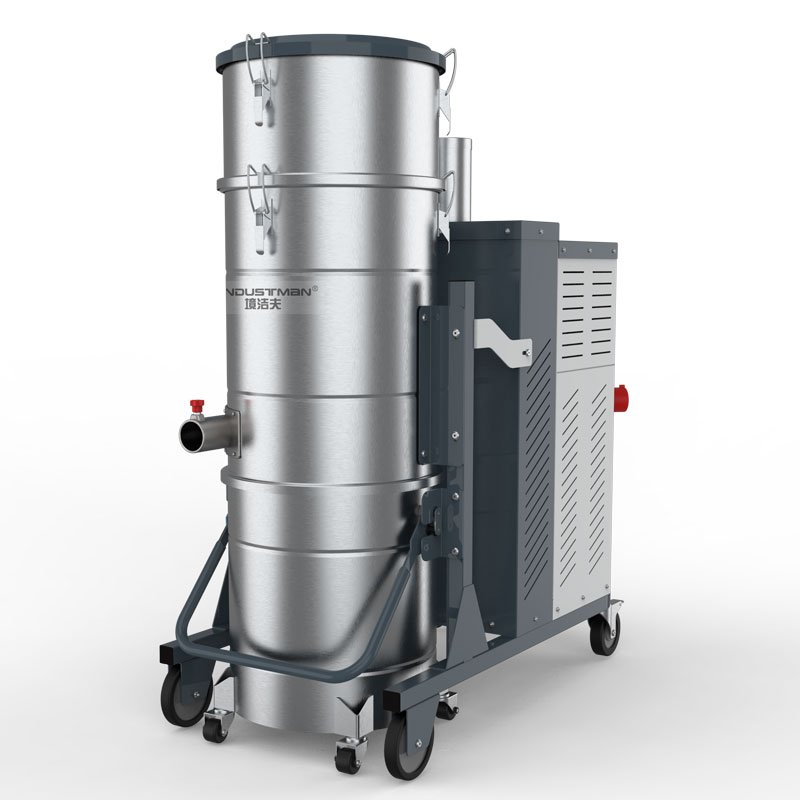

EHFD-M Three Phase Industrial Vacuum Cleaner with Automatic Pulse Filter Cleaning

ENDUSTMAN EHFD30M is a three phase industrial vacuum with automatic pulse filter cleaning. Its 3000W blower runs around the clock while timed air pulses keep the filter clear with no manual work.

Key Options	Value
Power	3000 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	380 m³/h^{What is this?}
Vacuum / Suction	26 kPa^{What is this?}
Tank Capacity	120 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Pulse Jet Cleaning ^{What is this?}
Noise	70 dB(A) ^{What is this?}
Filter Area	81000 cm² ^{What is this?}
Weight	160 kg
Dimensions	1250 × 590 × 1600 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	High volumes of fine dust, clog-prone materials, and continuous production lines with minimal operator attendance.

Accessories

Standard 40mm Accessory Kit

5 m nylon hose (40mm inner diameter, quick-connect);
Floor nozzle for dry pickup;
Squeegee nozzle for water pickup;
Round brush for delicate surfaces;
Crevice tool for narrow gaps;
Two stainless steel wands — connectable into one long tube.

See all accessories, hose & power supply options →

Description

The EHFD-M series is a three-phase heavy-duty industrial vacuum cleaner with automatic pulse-jet filter cleaning, engineered for non-stop continuous operation. A digitally controlled timer adjusts the backflushing cycle, cleaning the filter automatically without manual intervention and maintaining consistent suction even under heavy dust loads. The washable laminated filter is reusable, the quick-release up-and-down tank simplifies waste disposal, and a vacuum gauge, phase selector switch, and silencer are fitted as standard. Capable of clearing large volumes of dust while working continuously, the EHFD-M is ideal for production lines, metalworking shops, and other high-dust industrial environments requiring uninterrupted dust extraction. A pressure relief device protects the blower under high negative pressure, helping extend service life and reduce downtime.

Key Features

Side-channel high-pressure blower with strong suction for long continuous operation;
Automatic pulse-jet backflushing with digitally adjustable cycle time;
Laminated filter element, washable and reusable, with excellent filtration;
Automatic pressure relief when negative pressure is too high;
Quick-connect suction inlet for convenient use;
Quick-release up-and-down tank design for easy waste disposal;
Full set of 50mm accessories included as standard;
Equipped with phase selector switch, vacuum gauge, and silencer.
