MODEL: EHFS22T

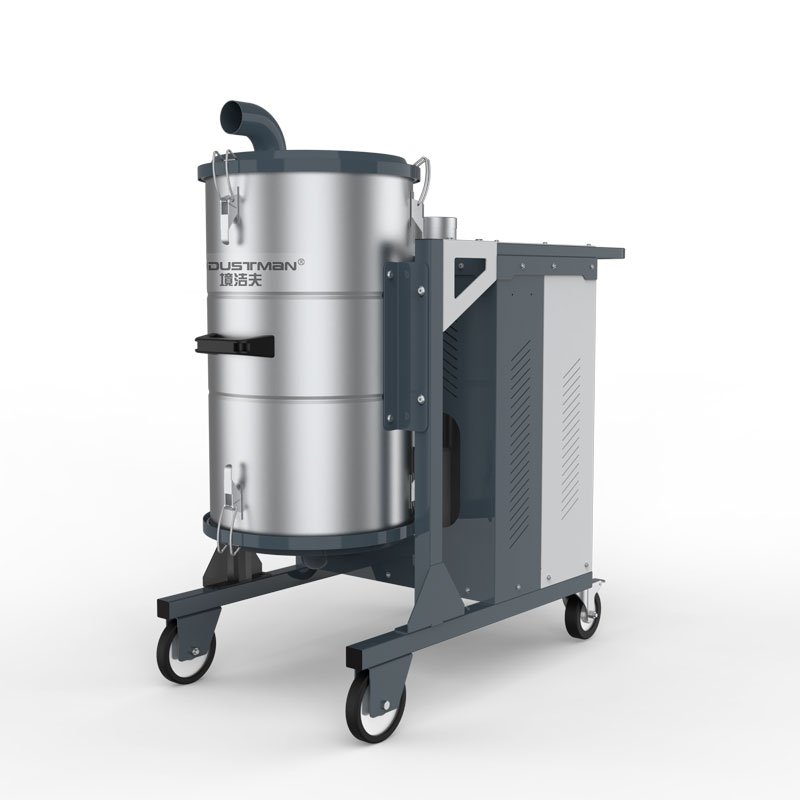

EHFS-T Industrial Vacuum Cleaner for Textile Industry Fibers and Lint Collection

ENDUSTMAN EHFS22T is an industrial vacuum purpose-built for textile mills. The top inlet and large filter bag collect fibers and lint without clogging, and 2200W suction runs continuously.

Key Options	Value
Power	2200 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	345 m³/h^{What is this?}
Vacuum / Suction	22 kPa^{What is this?}
Tank Capacity	80 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	40 mm
Filter Cleaning	Manual Cleaning ^{What is this?}
Noise	69 dB(A) ^{What is this?}
Filter Area	35000 cm² ^{What is this?}
Weight	95 kg
Dimensions	1050 × 500 × 1200 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Textile and fiber waste: lint, thread, fabric strips, paper fiber, plush, non-woven trimmings, yarn, down, and film scraps.

Accessories

Standard 40mm Accessory Kit

5 m nylon hose (40mm inner diameter, quick-connect);
Floor nozzle for dry pickup;
Squeegee nozzle for water pickup;
Round brush for delicate surfaces;
Crevice tool for narrow gaps;
Two stainless steel wands — connectable into one long tube.

See all accessories, hose & power supply options →

Description

The EHFS-T series industrial vacuum cleaner is purpose-built for textile mills, garment factories, and other space-constrained facilities. It is also well suited to the paper and packaging industries, efficiently collecting paper fiber, fabric fiber, cotton fiber, paper scraps, and packaging debris. A top-inlet structure engineered for fibrous materials prevents clogging, while the built-in large-capacity filter bag simplifies waste handling and keeps the machine compact. The side-channel high-pressure blower supports long continuous operation, and a vacuum gauge and silencer are fitted as standard. Leakage, phase-loss, and overload protection safeguard the electrics, and 2kW/3kW models can be converted to 220V single-phase power to suit different factory environments.

Key Features

Top-inlet structure designed for the material characteristics of the textile industry;
Built-in large-capacity filter bag for easy waste handling;
Laminated filtration, washable and reusable, with excellent performance;
Automatic pressure relief when negative pressure is too high;
Side-channel high-pressure blower for long continuous operation;
Equipped with vacuum gauge and silencer;
Leakage, phase-loss, and overload protection;
2kW and 3kW models can be converted to 220V single-phase power for different environments.
