MODEL: EHFS55B

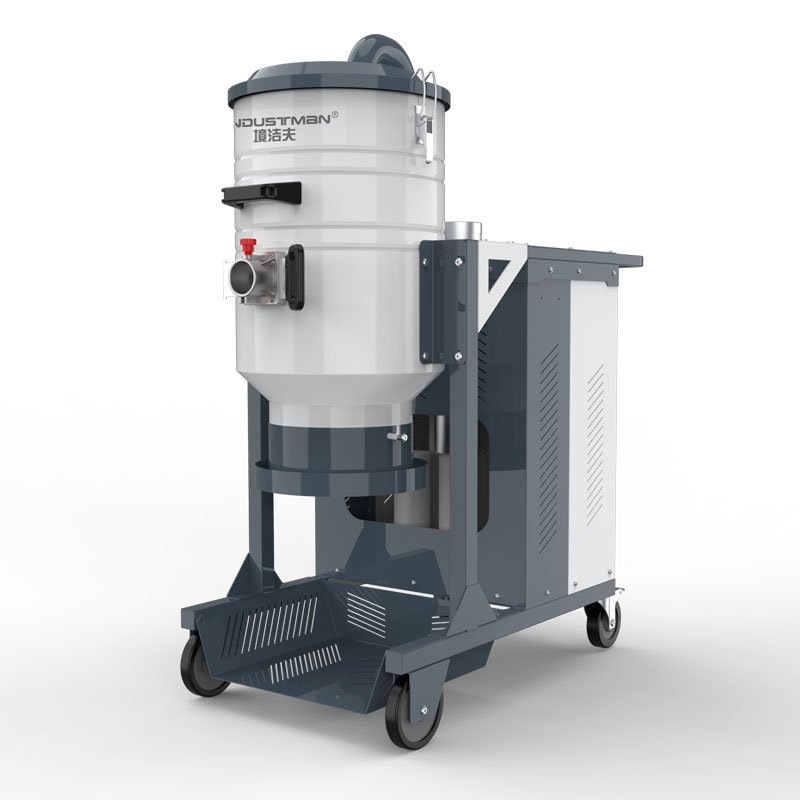

EHFS55B Heavy Duty Three Phase Industrial Vacuum Cleaner for Steel Grit and Glass

ENDUSTMAN EHFS55B is a heavy duty three phase vacuum for steel grit and glass. 5500W suction runs all day, and the large collection bag turns heavy waste into tidy, easy-to-handle bundles.

Key Options	Value
Power	5500 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	530 m³/h^{What is this?}
Vacuum / Suction	32 kPa^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Manual Back-flush ^{What is this?}
Noise	72 dB(A) ^{What is this?}
Filter Area	52800 cm² ^{What is this?}
Weight	130 kg
Dimensions	1130 × 590 × 1610 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Continuous bagging of high-volume dry dust, granules, chips, wood chips, sand, and metal debris.

Accessories

Standard 50mm Accessory Kit

5 m hose (50mm inner diameter, quick-connect);
Floor nozzle;
Round brush;
Crevice tool;
One steel S-wand.

Note: although a squeegee nozzle is included in the kit, this bagging model is intended for dry materials only.

The 50mm kit does not include a squeegee nozzle.

See all accessories, hose & power supply options →

Description

The EHFS75B is a three-phase heavy-duty bagged industrial vacuum cleaner designed for continuous operation. Its side-channel high-pressure blower delivers powerful suction for long hours of non-stop work, making it highly effective for collecting heavy materials such as iron chips, glass, steel grit, and stones, as well as any material that needs to be bagged for centralized handling and recycling. The unique bagging design simplifies collection and disposal, while pull-rod reverse-air cleaning keeps the washable laminated filter clear. A full set of 50mm accessories is included, and integrated overload, overcurrent, phase-loss, and leakage protection ensures safe, reliable electrical operation in heavy industrial environments.

Key Features

Side-channel high-pressure blower with strong suction for long continuous operation;
Pull-rod reverse-air filter cleaning, easy to operate;
Laminated filter element, washable and reusable, with excellent filtration;
Automatic pressure relief when negative pressure is too high;
Quick-connect suction inlet for easy use;
Unique bagging design for centralized material collection and handling;
Full set of 50mm accessories included as standard;
Overload, overcurrent, phase-loss, and leakage protection for electrical safety.
