MODEL: EHTD22

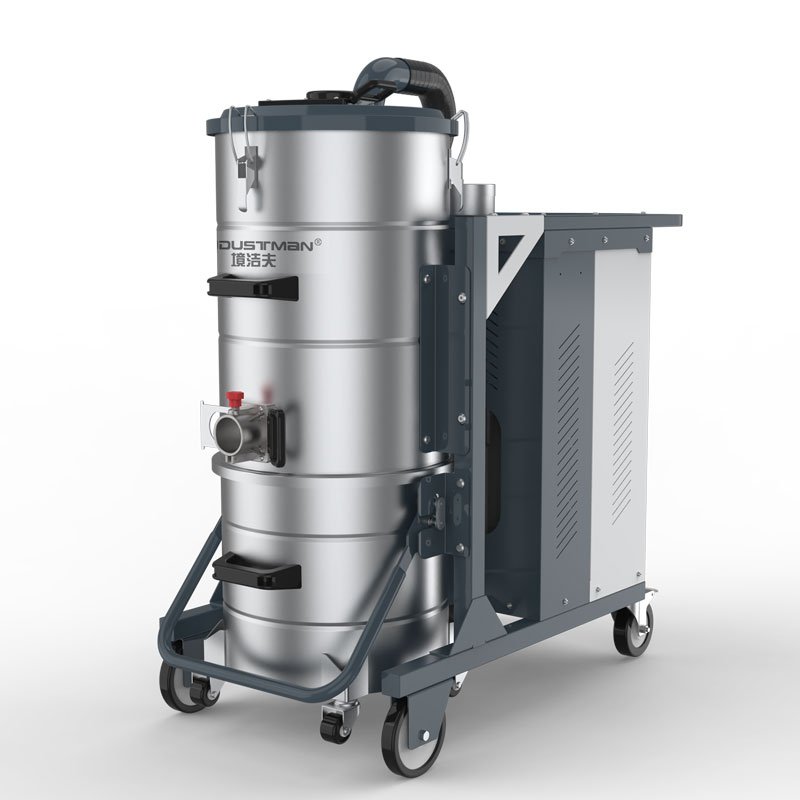

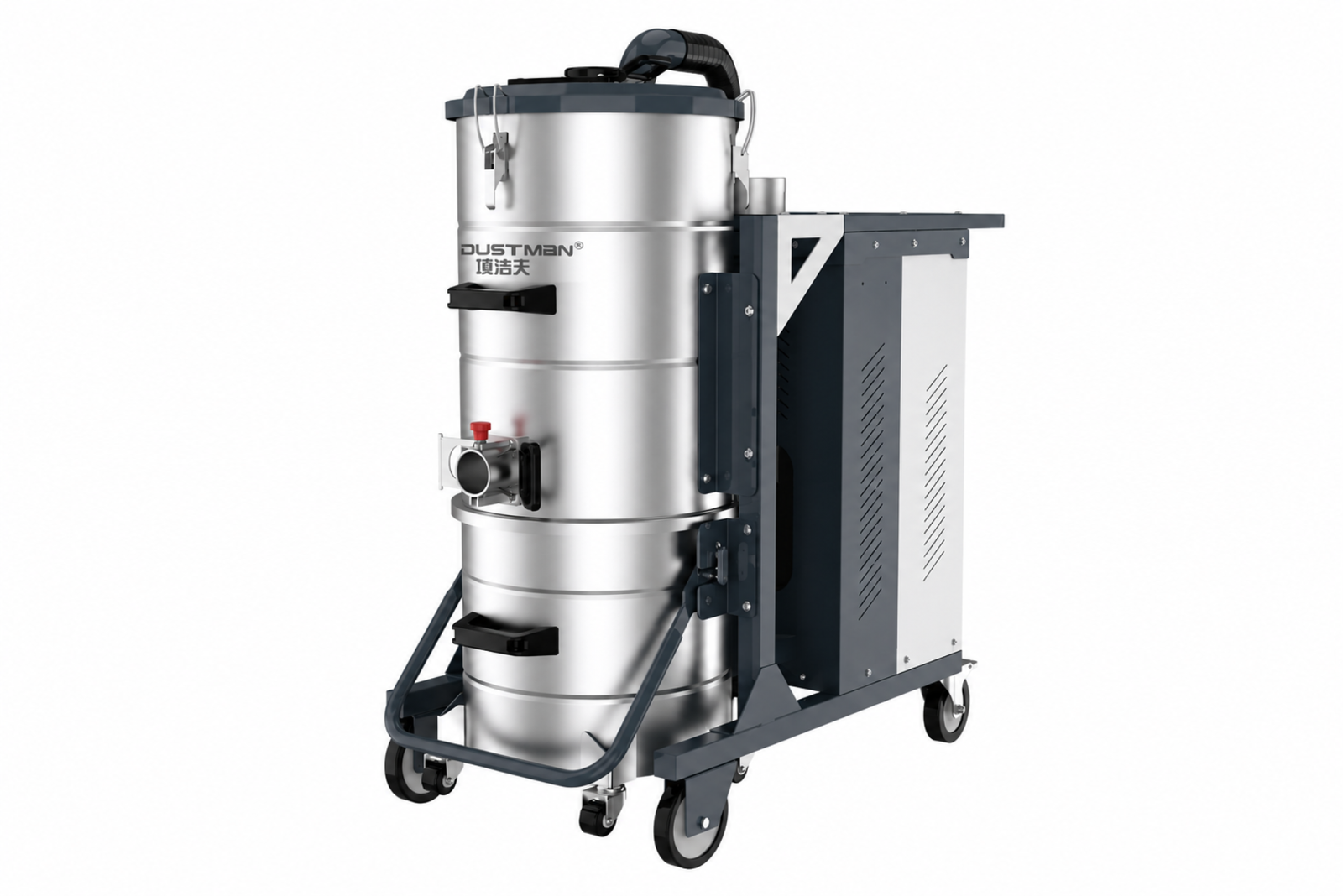

EHTD Series Compact Three Phase Industrial Vacuum Cleaner 70L Stainless Steel
ENDUSTMAN EHTD22 is a compact three phase industrial vacuum with a 70L stainless steel tank. The 2200W side-channel blower runs 24 hours, easily lifting metal chips and heavy dust in machine shops.
|
Key Options |
Value |
|---|---|
|
Power |
2200 W |
|
Voltage / Phase |
220/380V / 50Hz |
|
Airflow |
320 m³/h What is this? |
|
Vacuum / Suction |
22 kPa What is this? |
|
Tank Capacity |
70 L What is this? |
Specifications
|
Options |
Value |
|---|---|
|
Inlet Diameter |
40 mm |
|
Filter Cleaning |
Manual Back-flush What is this? |
|
Noise |
69 dB(A) What is this? |
|
Filter Area |
25000 cm² What is this? |
|
Weight |
90 kg |
|
Dimensions |
1190 × 520 × 1200 mm |
|
MOQ |
No Minimum order required |
|
Shipping |
Global Delivery, Customs clearance supported |
|
Warranty |
1-year warranty with responsive after-sales support. |
|
Key application |
Standard Accessories
|
Accessories |
Image |
Info |
|---|---|---|
|
Hose |
 |
Connects the main unit and attachments flexibly, extending the cleaning reach. |
|
Round brush |
 |
Dusts and vacuums, for surfaces that scratch easily. |
|
Steel wand |
 |
Redirects the airflow to clean tight corners. |
|
Floor nozzle |
 |
Vacuums large areas, for hard floors. |
|
Squeegee nozzle |
 |
Quickly picks up water, for wet areas. |
|
Crevice tool |
 |
Reaches into narrow gaps to vacuum. |
Description
The EHTD series is a compact three-phase industrial vacuum cleaner with an up-and-down separate tank design, also available in a single-phase version. Its side-channel high-pressure blower provides powerful suction for continuous 24-hour operation, easily handling heavier materials such as iron chips, glass, steel grit, and stones, as well as large volumes of fine dust. The tank body is crafted from stainless steel for durability, while the compact 70L capacity keeps the footprint small and the unit light enough to move around tight workshops. A laminated filter element delivers high filtration precision, quick-release buckets make emptying fast, and 40mm accessories are standard with 50mm optional.
Key Features
- Standard 380V power supply, 220V optional;
- Side-channel high-pressure blower with strong suction for 24-hour operation;
- Tank body crafted from stainless steel, robust and durable;
- Laminated filter element with high filtration precision;
- Quick-connect suction inlet for easy operation;
- Quick-release up-and-down tank design for easy waste disposal;
- Standard 40mm accessories, 50mm optional;
- Compact 70L capacity with a small footprint and light weight.
