MODEL: EAFD36

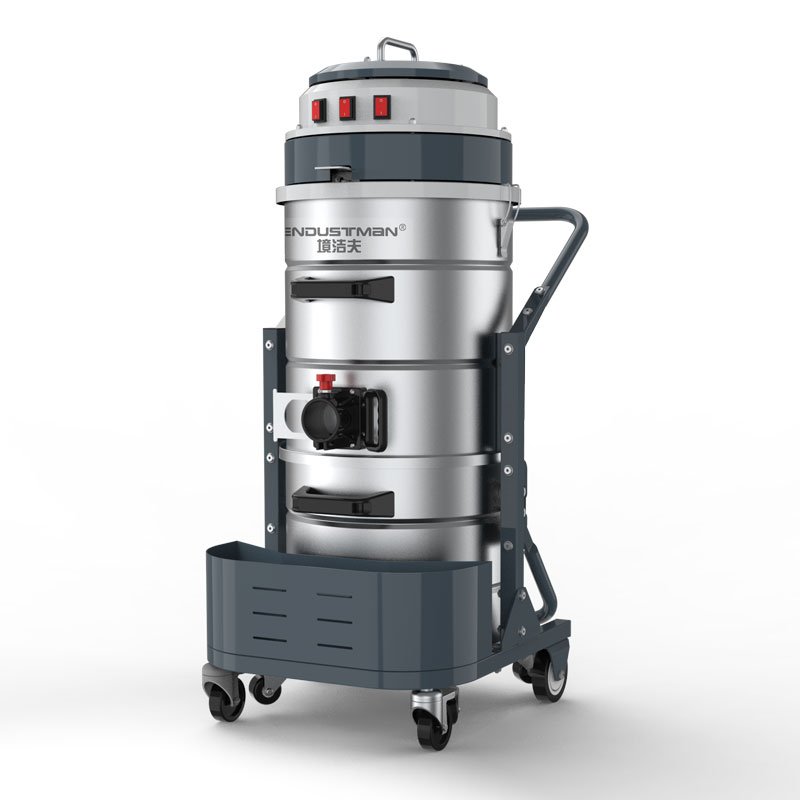

EAFD 220V Industrial Vacuum Cleaner with Up-and-Down Tank for Factory Floors

ENDUSTMAN EAFD36 combines 3600W suction with a 100L up-and-down tank for long cleaning runs on factory floors. The metal power head is built to last, and the quick-release tank empties in seconds.

Key Options	Value
Power	3600 W
Voltage / Phase	220V @ 50Hz
Airflow	380 m³/h^{What is this?}
Vacuum / Suction	26 kPa^{What is this?}
Tank Capacity	100 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Manual Back-flush ^{What is this?}
Noise	69 dB(A) ^{What is this?}
Filter Area	52800 cm² ^{What is this?}
Weight	53 kg
Dimensions	710 × 620 × 1290 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Daily factory cleaning with heavier dust loads, metal chips, hard objects, and heavy granules.

Accessories

Standard 40mm Accessory Kit

5 m nylon hose (40mm inner diameter, quick-connect);
Floor nozzle for dry pickup;
Squeegee nozzle for water pickup;
Round brush for delicate surfaces;
Crevice tool for narrow gaps;
Two stainless steel wands — connectable into one long tube.

See all accessories, hose & power supply options →

Description

The EAFD series is a single-phase industrial vacuum cleaner with a robust metal power head and an up-and-down separate tank design. Powered by a 220V single-phase supply and equipped with multiple high-suction motors, it delivers strong, adjustable performance while remaining light and easy to move between workstations. Manual reverse-air filter cleaning is fitted as standard, with electronic cleaning available as an option, and the washable laminated filter keeps maintenance costs low. A pressure relief device protects the unit under high negative pressure. The EAFD is well suited for routine cleaning in factory workshops, effectively collecting floor dust, coal ash, cement powder, and other dry industrial debris.

Key Features

High-suction motors with copper windings and carbon brushes;
Waterproof rocker switches for safe and convenient operation;
Manual reverse-air filter cleaning as standard, electronic cleaning optional;
Automatic pressure relief when negative pressure is too high;
Washable filter made of laminated filter media;
Powder-coated carbon steel dust bucket;
Quick-connect suction inlet;
Up-and-down separate tank for easy detachment and emptying.
