MODEL: EAFD36P

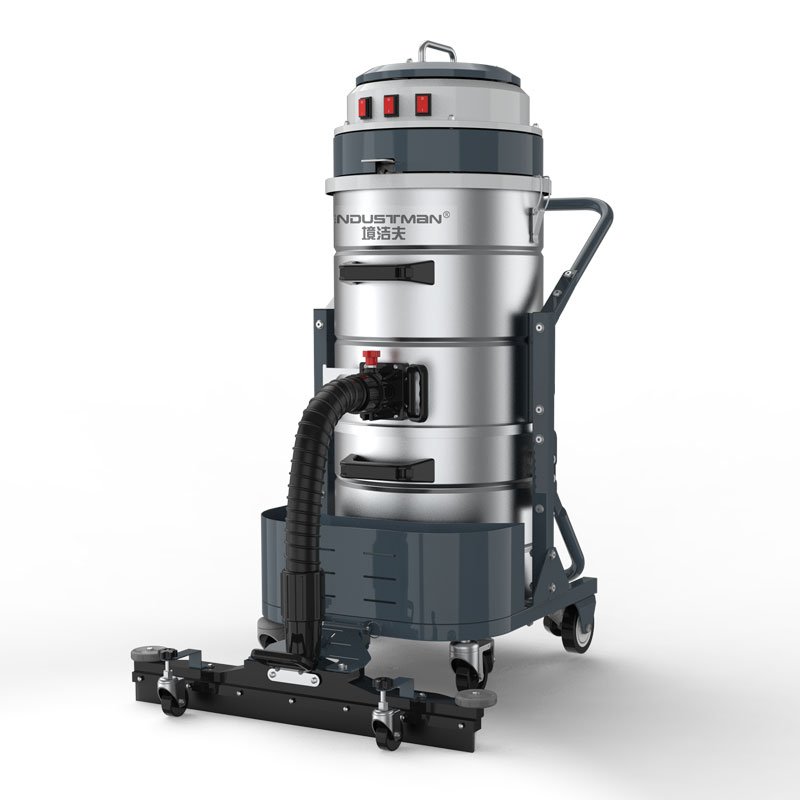

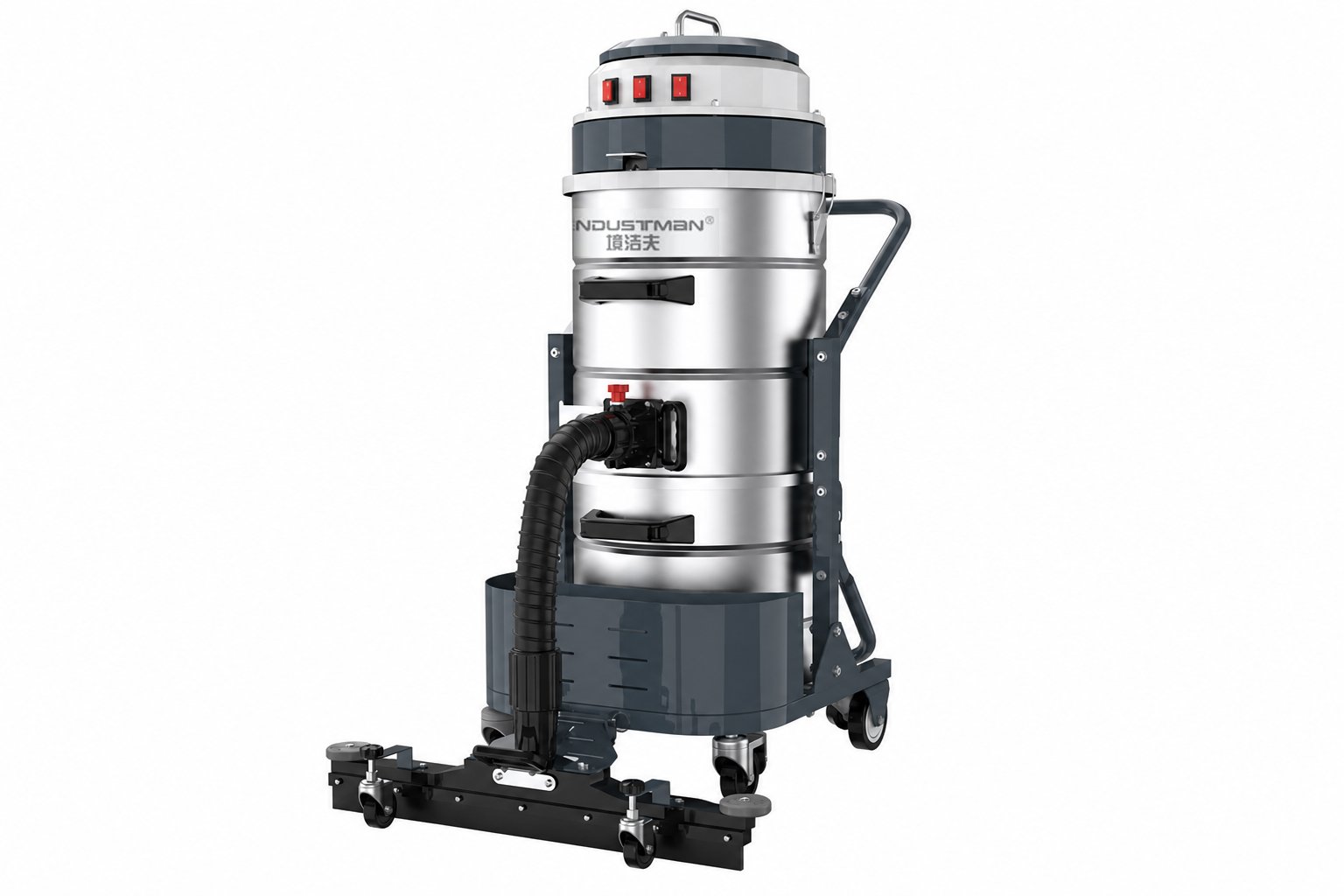

EAFD Single Phase Industrial Vacuum Cleaner for Coal Ash and Cement Dust

ENDUSTMAN EAFD36P is a 220V industrial vacuum made for heavy dust like coal ash and cement powder. 3600W power, a 100L tank, and washable filter keep it running shift after shift with low upkeep.

Key Options	Value
Power	3600 W
Voltage / Phase	StandardSingle-phase, 220V@50Hz Optional110V, 120V, 127V, 230V, 240V @50Hz or 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	380 m³/h^{What is this?}
Vacuum / Suction	26 kPa^{What is this?}
Tank Capacity	100 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Manual Back-flush ^{What is this?}
Noise	69 dB(A) ^{What is this?}
Filter Area	52800 cm² ^{What is this?}
Weight	55 kg
Dimensions	710 × 620 × 1290 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Daily factory cleaning with heavier dust loads, metal chips, hard objects, and heavy granules.

Accessories

Standard 40mm Accessory Kit + 70cm Push Squeegee

70cm push squeegee for wide floor pickup;
5 m nylon hose (40mm inner diameter, quick-connect);
Floor nozzle for dry pickup;
Squeegee nozzle for water pickup;
Round brush for delicate surfaces;
Crevice tool for narrow gaps;
Two stainless steel wands — connectable into one long tube.

Switch between push squeegee and hand tools anytime; hand accessories stay included.

See all accessories, hose & power supply options →

Description

The EAFD series is a single-phase industrial vacuum cleaner with a robust metal power head and an up-and-down separate tank design. Powered by a 220V single-phase supply and equipped with multiple high-suction motors, it delivers strong, adjustable performance while remaining light and easy to move between workstations. Manual reverse-air filter cleaning is fitted as standard, with electronic cleaning available as an option, and the washable laminated filter keeps maintenance costs low. A pressure relief device protects the unit under high negative pressure. The EAFD is well suited for routine cleaning in factory workshops, effectively collecting floor dust, coal ash, cement powder, and other dry industrial debris.

Key Features

High-suction motors with copper windings and carbon brushes;
Waterproof rocker switches for safe and convenient operation;
Manual reverse-air filter cleaning as standard, electronic cleaning optional;
Automatic pressure relief when negative pressure is too high;
Washable filter made of laminated filter media;
Powder-coated carbon steel dust bucket;
Quick-connect suction inlet;
Up-and-down separate tank for easy detachment and emptying.
