MODEL: EHFD22EX

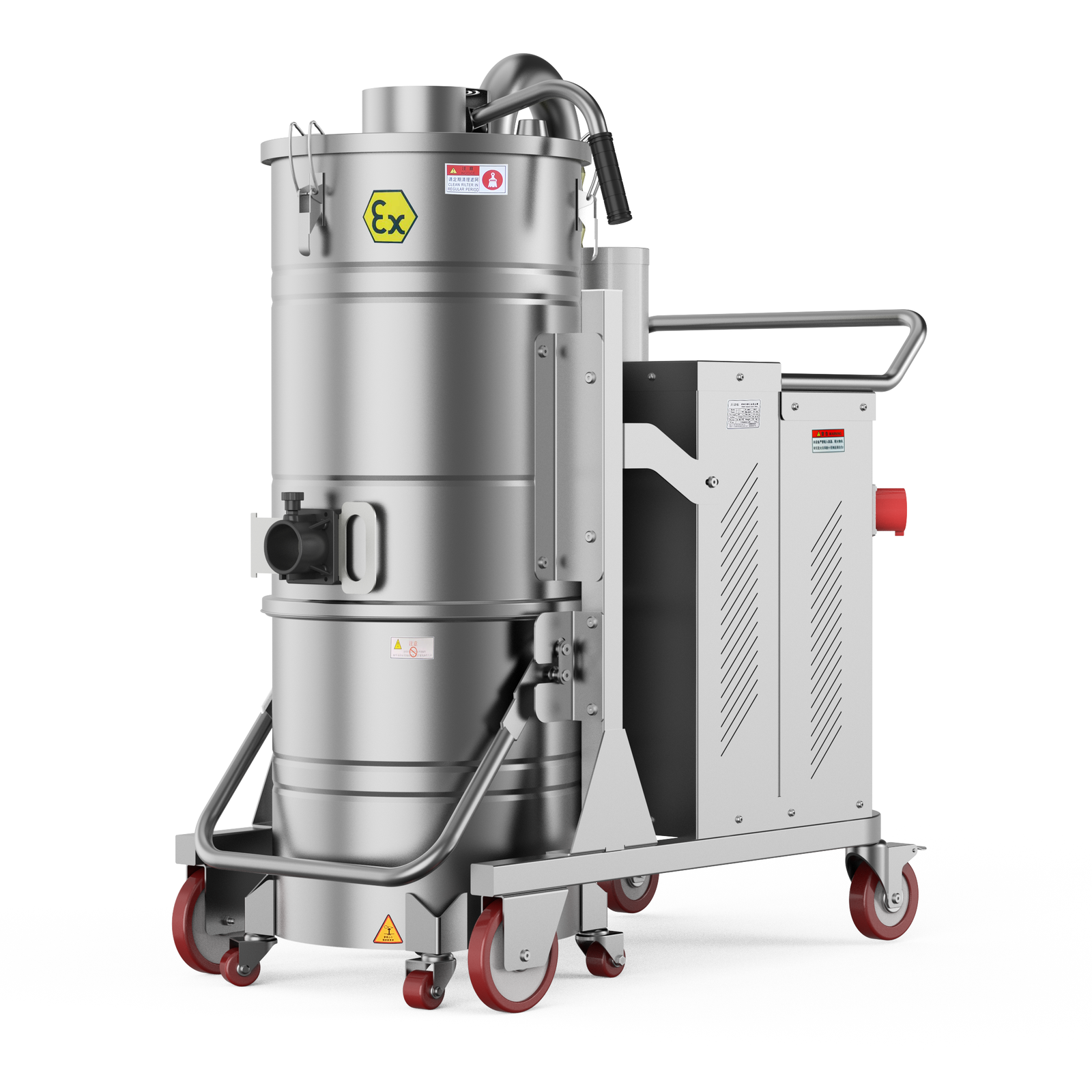

EHFD-EX 100L Heavy Duty Industrial Vacuum Cleaner with Explosion-Proof Motor and Pre-Separator

ENDUSTMAN EHFD22EX is a 100L heavy-duty industrial vacuum for dust Ex zones, with an explosion-proof 2200W motor, pre-separator, and full anti-static kit. Material evaluation is required; aluminum and magnesium powders cannot be collected.

Key Options	Value
Power	2200 W
Voltage / Phase	StandardThree-Phase, 380V@50Hz Optional380V / 400V / 415V / 460V / 480V, @50Hz / 60Hz NoticeVoltage and frequency can be configured according to local power supply requirements. CustomizationCustom voltage options are available upon request. Please specify your local voltage and frequency when ordering.
Airflow	320 m³/h^{What is this?}
Vacuum / Suction	22 kPa^{What is this?}
Tank Capacity	100 L^{What is this?}

Get A QuoteNeed Customization

Specifications

Options	Value
Inlet Diameter	50 mm
Filter Cleaning	Manual Back-flush ^{What is this?}
Noise	64 dB(A) ^{What is this?}
Filter Area	52800 cm² ^{What is this?}
Weight	135 kg
Dimensions	1370 × 600 × 1260 mm
MOQ	No Minimum order required
Shipping	Global Delivery, Customs clearance supported
Warranty	1-year warranty with responsive after-sales support.
Key application	Evaluated dust Ex zones with heavier dust loads and heavy debris, applications needing pre-separation, or projects requiring whole-machine certification.

Accessories

Anti-Static Accessory Kit (40mm)

5 m conductive / anti-static hose;
Anti-static floor nozzle;
Anti-static round brush;
Anti-static crevice tool;
Grounding wire with clamp.

Anti-static accessories reduce static spark risk; material suitability must be confirmed by project evaluation.

See all accessories, hose & power supply options →

Description

The EHFD-EX series is a heavy-duty three-phase industrial vacuum cleaner built for dust environments with explosion risk that have been professionally evaluated (such as Zone 21/22). It combines an explosion-proof turbo motor, Ex-certified electrical components, an anti-static 0.3μm PTFE-membrane large filter, and a full anti-static kit with conductive hose and grounding clamp to reduce ignition risk from static electricity. The whole machine does not currently hold a whole-unit explosion protection certificate. Even so, an Ex-rated machine does not make the collected material safe: the dust type, zone rating, and material must be confirmed by project evaluation before ordering, and aluminum powder, magnesium powder, and flammable or explosive materials must not be collected. The 2200W blower delivers 22 kPa vacuum and 320 m³/h airflow for long continuous operation, while the standard pre-separator intercepts heavy and sharp debris before it reaches the 52,800 cm² filter. The 100L quick-release up-and-down tank makes disposal fast, and a 220V version is available for models up to 3kW.

Key Features

Explosion-proof turbo motor with Ex-certified electrical components, suitable for long continuous operation;
Explosion-proof motor and electrical components carry their own Ex certifications; no whole-machine certificate at present;
Anti-static Toray 0.3μm PTFE-membrane large filter (52,800 cm²), washable and reusable;
Standard pre-separator intercepts heavy and sharp debris to protect the filter;
Full anti-static kit: conductive hose, anti-static nozzles, and grounding clamp;
Quick-release 100L up-and-down tank for easy waste disposal;
Standard 380V/50Hz; overseas voltages customizable;
Important: Dust type and zone rating must be confirmed by project evaluation before ordering; aluminum powder, magnesium powder, and flammable or explosive materials must not be collected.
