MODEL: EHFD75EX

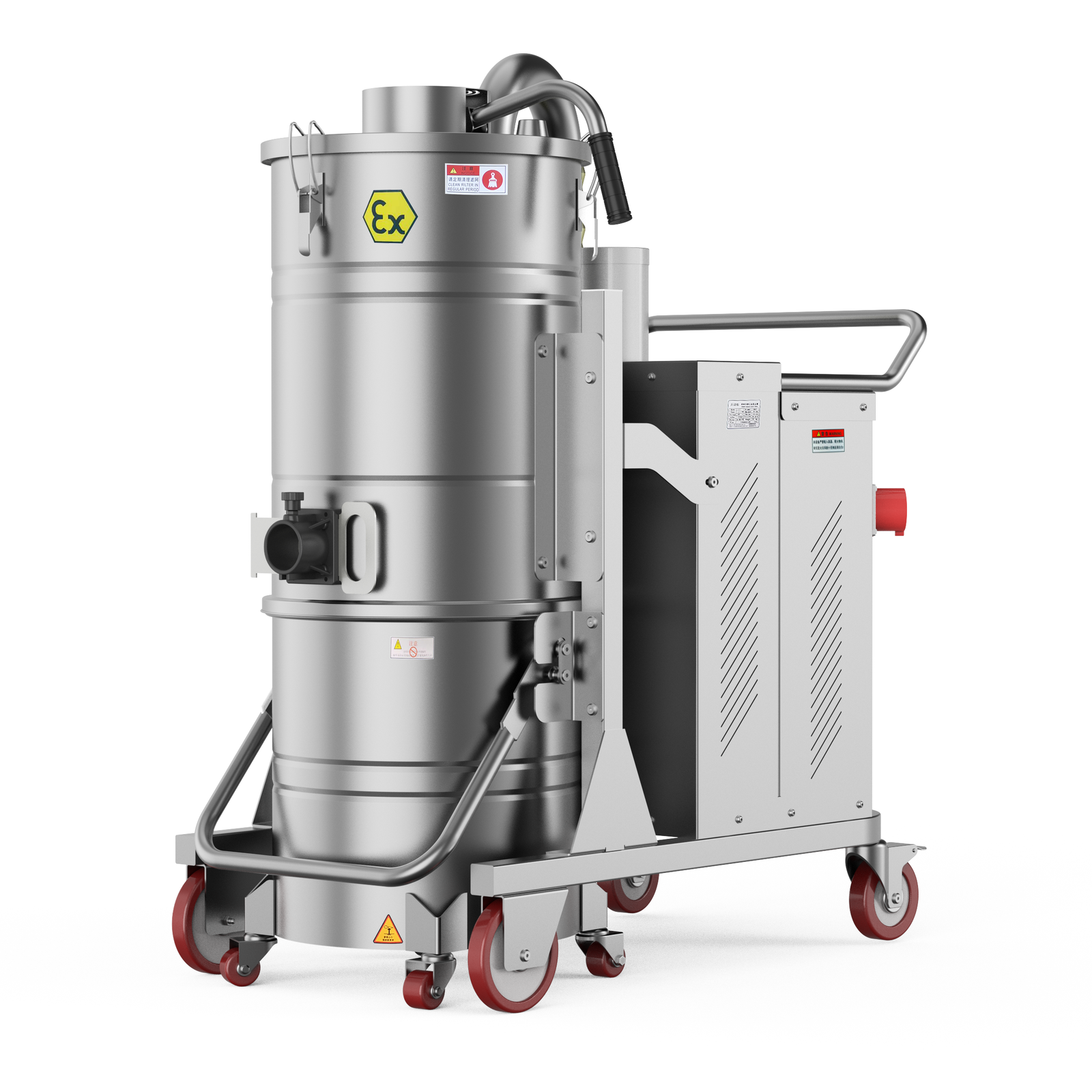

EHFD-EX Certified Explosion Proof Industrial Vacuum Cleaner for Continuous Duty
ENDUSTMAN EHFD75EX is a certified explosion proof vacuum for continuous duty. The 7500W EX motor, anti-static filter, and 100L tank give powerful, safe cleaning in hazardous industrial areas.
|
Key Options |
Value |
|---|---|
|
Power |
7500 W |
|
Voltage / Phase |
380V / 50Hz |
|
Airflow |
540 m³/h What is this? |
|
Vacuum / Suction |
34 kPa What is this? |
|
Tank Capacity |
100 L What is this? |
Specifications
|
Options |
Value |
|---|---|
|
Inlet Diameter |
50 mm |
|
Filter Cleaning |
Manual Back-flush What is this? |
|
Noise |
72 dB(A) What is this? |
|
Filter Area |
52800 cm² What is this? |
|
Weight |
152 kg |
|
Dimensions |
1370 × 600 × 1260 mm |
|
MOQ |
No Minimum order required |
|
Shipping |
Global Delivery, Customs clearance supported |
|
Warranty |
1-year warranty with responsive after-sales support. |
|
Key application |
Standard Accessories
|
Accessories |
Image |
Info |
|---|---|---|
|
Hose |
 |
Connects the main unit and attachments flexibly, extending the cleaning reach. |
|
Round brush |
 |
Dusts and vacuums, for surfaces that scratch easily. |
|
Steel wand |
 |
Redirects the airflow to clean tight corners. |
|
Floor nozzle |
 |
Vacuums large areas, for hard floors. |
|
Squeegee nozzle |
 |
Quickly picks up water, for wet areas. |
|
Crevice tool |
 |
Reaches into narrow gaps to vacuum. |
Description
The EHFD-EX series explosion-proof industrial vacuum cleaner features a full EX-rated configuration: the motor, switches, and all electrical components carry explosion-proof certification, and a complete set of anti-static suction accessories eliminates static spark risks. It supports long continuous operation, with manual press air backflushing for one-touch filter cleaning, a quick-release separate tank for fast dust disposal, and built-in pressure relief plus four-fold circuit protection for safer use. The anti-static aluminized filter element on a Toray polyester base blocks static-laden dust. Multiple power ratings cover different working conditions, making the EHFD-EX widely used in chemical, pharmaceutical, flour milling, magnesium processing, and coal mining applications requiring explosion-proof dust collection.
Key Features
- Explosion-proof power: EX-certified high-pressure turbo explosion-proof motor for long continuous operation;
- Fully explosion-proof electrics: all electrical components including the main power switch carry EX certification;
- Anti-static filtration: Toray polyester fiber base with aluminized anti-static filter element to block static-laden dust;
- Easy filter cleaning: manual press air backflushing, one-touch filter cleaning, lasting stable suction;
- Quick-install inlet: quick-connect suction port for fast accessory changes;
- Fast waste discharge: quick-release separate tank structure for simple dust disposal;
- Pressure relief protection: automatic pressure release under high negative pressure to protect the machine;
- Multiple electrical protections: integrated overload, overcurrent, phase-loss, and leakage protection.
