MODEL: EHTD22EX

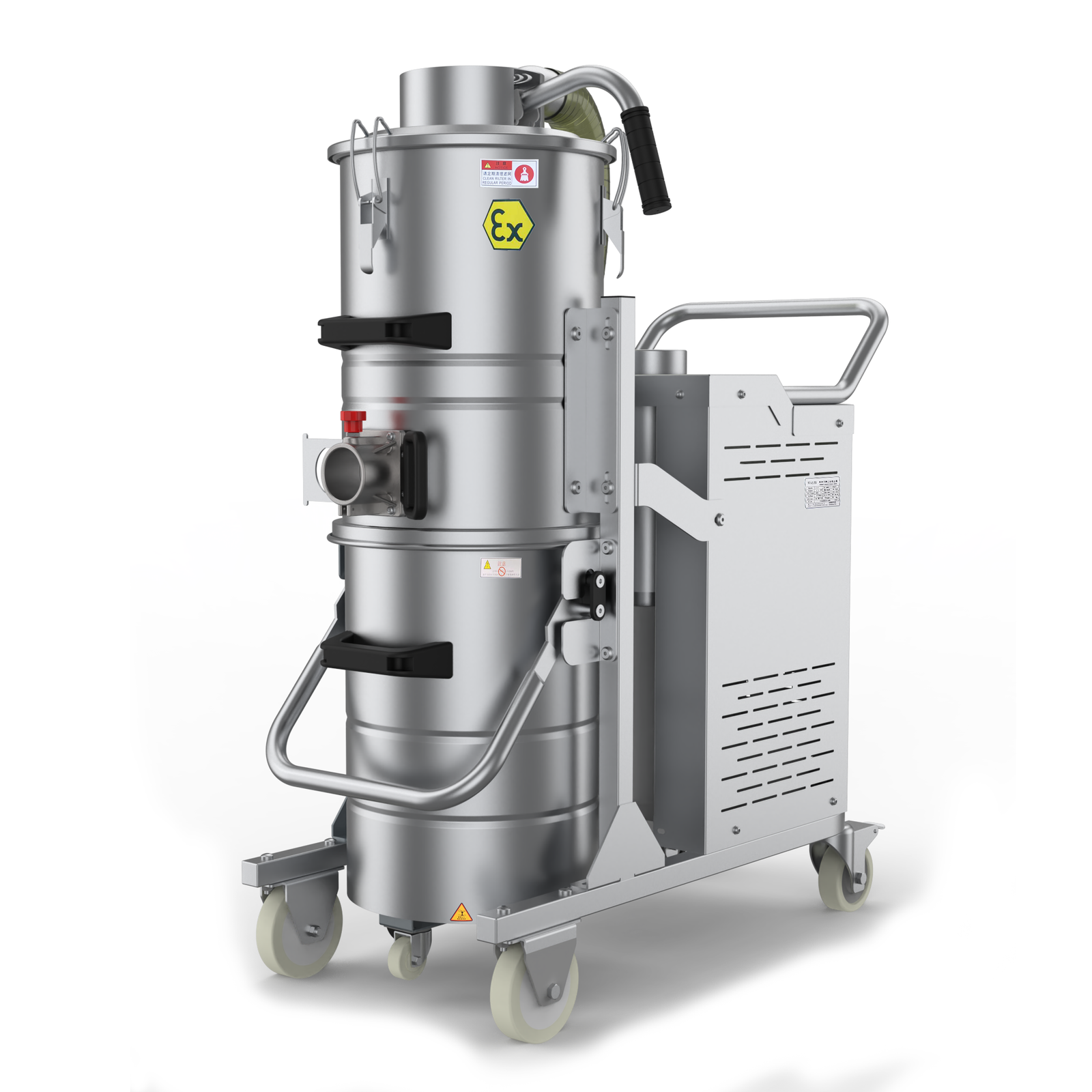

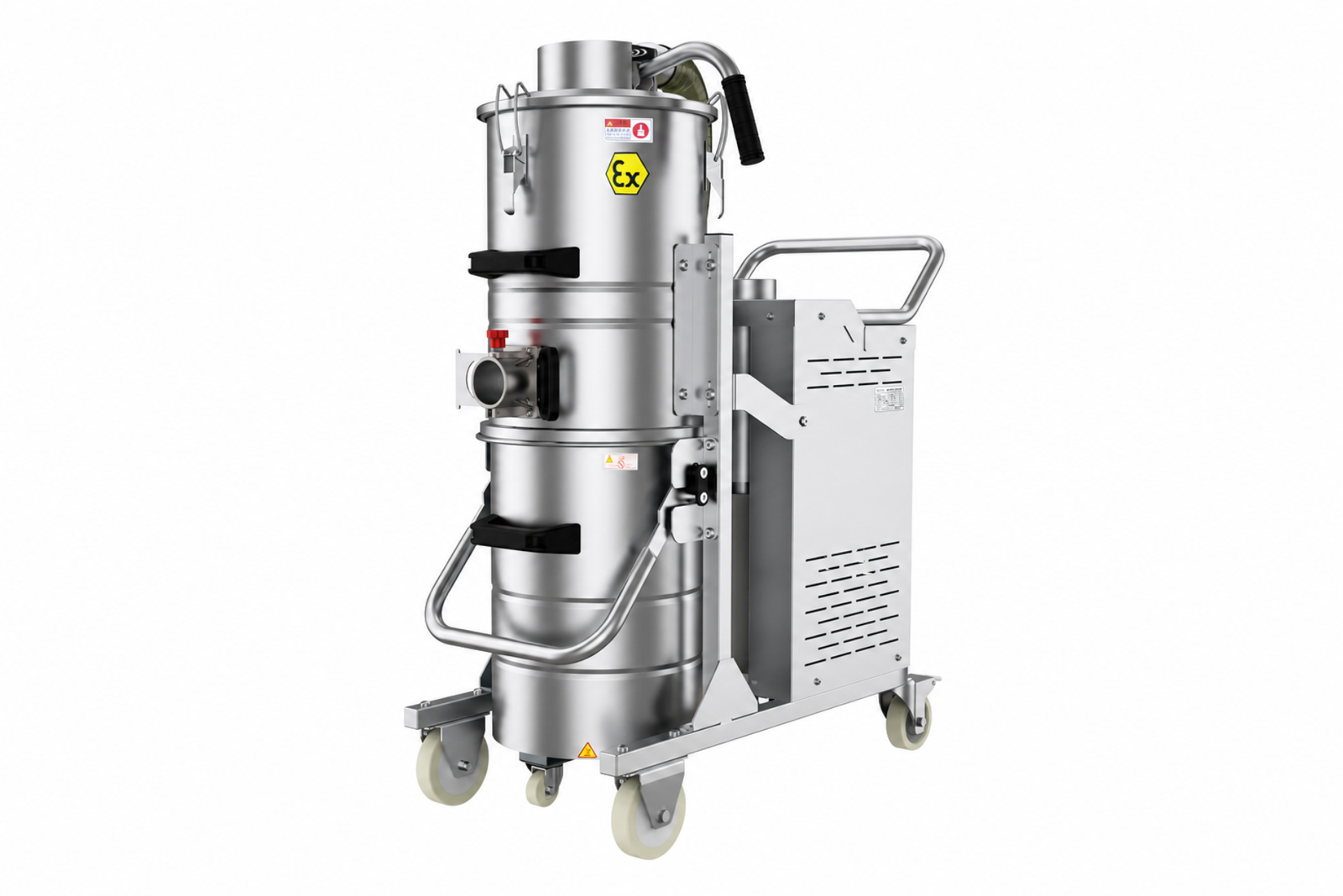

EHTD-EX Compact Explosion Proof Industrial Vacuum Cleaner 70L Three Phase
ENDUSTMAN EHTD22EX is a compact explosion proof vacuum with a 70L tank. Its EU EX-certified motor and anti-static kit make 2200W three phase cleaning safe in pharma and chemical workshops.
|
Key Options |
Value |
|---|---|
|
Power |
2200 W |
|
Voltage / Phase |
220/380V / 50Hz |
|
Airflow |
320 m³/h What is this? |
|
Vacuum / Suction |
22 kPa What is this? |
|
Tank Capacity |
70 L What is this? |
Specifications
|
Options |
Value |
|---|---|
|
Inlet Diameter |
40 mm |
|
Filter Cleaning |
Manual Back-flush What is this? |
|
Noise |
69 dB(A) What is this? |
|
Filter Area |
35400 cm² What is this? |
|
Weight |
90 kg |
|
Dimensions |
1030 × 530 × 1170 mm |
|
MOQ |
No Minimum order required |
|
Shipping |
Global Delivery, Customs clearance supported |
|
Warranty |
1-year warranty with responsive after-sales support. |
|
Key application |
Standard Accessories
|
Accessories |
Image |
Info |
|---|---|---|
|
Hose |
 |
Connects the main unit and attachments flexibly, extending the cleaning reach. |
|
Round brush |
 |
Dusts and vacuums, for surfaces that scratch easily. |
|
Steel wand |
 |
Redirects the airflow to clean tight corners. |
|
Floor nozzle |
 |
Vacuums large areas, for hard floors. |
|
Squeegee nozzle |
 |
Quickly picks up water, for wet areas. |
|
Crevice tool |
 |
Reaches into narrow gaps to vacuum. |
Description
The EHTD-EX series is a compact three-phase explosion-proof industrial vacuum cleaner, with a single-phase version available on request. The machine is equipped with an EU EX-certified motor and explosion-proof electrical components, plus a complete anti-static kit including an explosion venting membrane, anti-static filter, conductive hose, and grounding spring clamp, eliminating explosion hazards from flammable and combustible dust. Its compact 70L up-and-down separate tank design takes up little space and moves easily through narrow workshops. A full set of 40/50mm dual-diameter anti-static accessories covers various cleaning tasks, making the EHTD-EX ideal for coal yards, magnesium plants, chemical plants, pharmaceutical factories, and flour mills with explosion-proof dust collection requirements.
Key Features
- Flexible power supply: standard 380V three-phase, 220V version optional on request;
- Explosion-proof power: turbo high-pressure motor with EX certification for long continuous operation;
- Fully explosion-proof electrics: all electrical components including the power switch carry EX certification;
- Anti-static filtration: Toray polyester fiber base with aluminized anti-static filter element to suppress static buildup;
- Quick-connect suction port for easy, labor-saving accessory changes;
- Quick-release up-and-down tank for convenient dust disposal;
- Universal accessories: full set of 40/50mm dual-diameter anti-static accessories for various cleaning tasks;
- Compact and space-saving: 70L small-capacity body, easy to move and fits in narrow workshops.
